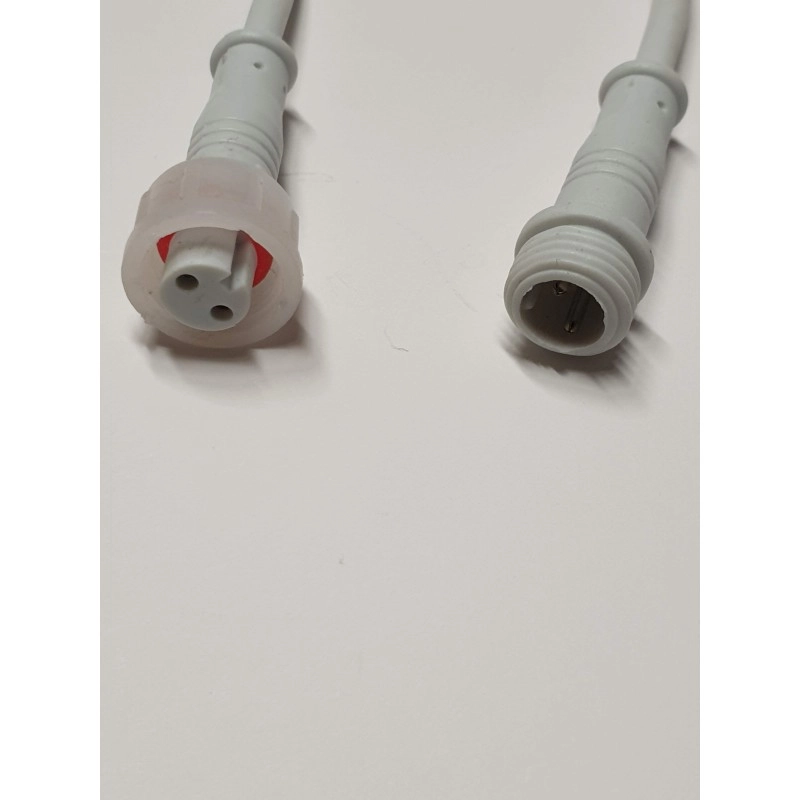

LED strip power wire LRA0009, with wire, 2 pins

Reference: 16-000009

LED strip power wire LRA0009,

with wire,

2 pins, SMD, COB,

Mono, DTW,

IP54,

47 Item Items In Stock Warning: Last items in stock!

1,15 €

1,15 € per tk

Quantity

Rating: Be the first to write a review!

Data sheet

Number of contatcs	2
Suitable for LED strip	Mono, DTW
Max voltage - (V DC)	24
Max current - (A)	2,5
Strip type	SMD, COB
Weight - (g1pc)	15
Diameter - (mm)	17
Strip IP	54
Body color	white
Cable length - (cm)	14
Cable color	red/black
Wire corss-section - (mm²)	0,34
Warranty - (y)	2
Wire corss-section - (AWG)	22
Materials	plastic

More info

For a better connection, you can use soldering to connect the strips, but this is not possible every time. Then it's good to use the fast connection.

Please pay attention that the quick connection can be used at either end of the strip. This causes a situation where the colors of the cable or contact markings are different, i.e. in a mirror image.
