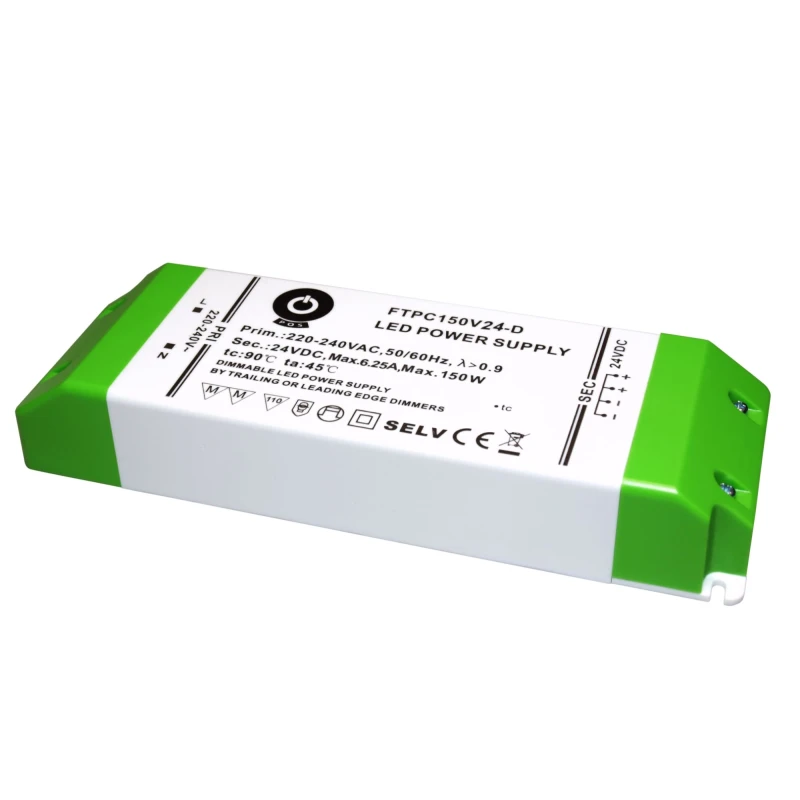

Power supply FTPC150V24-D, 24V, 2-6,25A, 150W, DIM

Reference: 05-001082

Power supply FTPC150V24-D,

180-264 V AC,

24 V DC, 2-6,25 A, 150W, IP4X, DIM

10 Item Items In Stock Warning: Last items in stock!

73,88 €

73,88 € per tk

Quantity

Rating: Be the first to write a review!

Model	FTPC150V24-D
Minimum input voltage - (V AC)	180
Input voltage - (V AC)	230
Maximum input voltage - (V AC)	264
Output power - (W)	150
Power supply type	Constant voltage
Output voltage - (V DC)	24
Min output current - (A)	2
Max output current - (A)	6,25
Power factor - PF (cos φ)	0,9
Ambient temperature - (° C)	-20 + 45
Efficiency - (%)	90
Overvoltage protection	36 V, Lülitub välja. Peale ülepinge kadumist ei käivitu ise.
Short circuit protection	Hiccup - auto recovery.
Overload protection	110 - 140 %, Hiccup - töö taastub peale ülekoormuse kadumist.
Temperature protection	110 ± 10°C, töö taastub peale temperatuuri alanemist
Dimming	yes
Can drive	Mono
Triac	Yes
Dimming range	10 - 100 %
Dimming step	smooth
Width - (mm)	68
Length - (mm)	195
Height - (mm)	32
Weight - (g1pc)	600
Ingress protection - (IP)	4X
Fixing	srew fixing
Connection	screw terminal
Warranty - (y)	2
