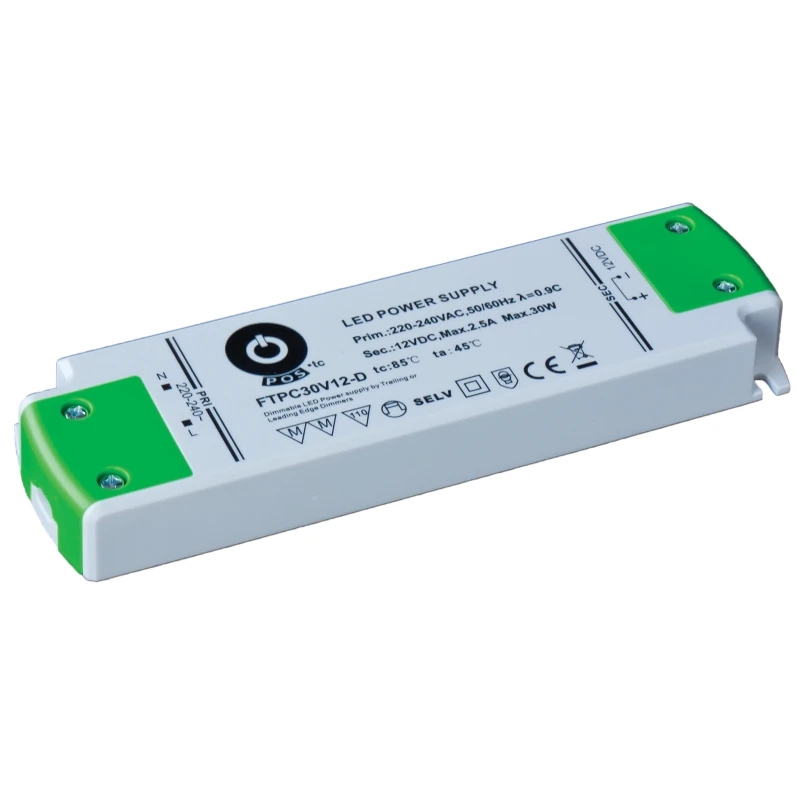

Power supply FTPC30V12-D, 12V, 2,5A, 30W, DIM

Reference: 05-001151

Power supply FTPC30V12-D,

198-264 V AC,

12 V DC, 2,5 A, 30W, DIM

10 Item Items In Stock Warning: Last items in stock!

19,47 €

19,47 € per tk

Quantity

Rating: Be the first to write a review!

Model	FTPC30V12-D
Minimum input voltage - (V AC)	198
Input voltage - (V AC)	230
Maximum input voltage - (V AC)	264
Output power - (W)	30
Output voltage - (V DC)	12
Output current - (A)	2,5
Power factor - PF (cos φ)	0,9
Power factor correction - (PFC)	Yes
Activ power factor correction - (APFC)	Yes
Ambient temperature - (° C)	-20 + 45
Efficiency - (%)	83
Overvoltage protection	100 %, Turns off. Need to re-power after over voltage no longer present.
Short circuit protection	Hiccup - auto recovery.
Overload protection	15,5V, Lülitub välja. Peale ülekoormuse kadumist ei käivitu ise.
Temperature protection	110°C ± 10°C, Hiccup - töö taastub peale jahtumist.
Dimming	yes
Can drive	Mono
Triac	Yes
Dimming range	1 - 100%
Dimming step	smooth

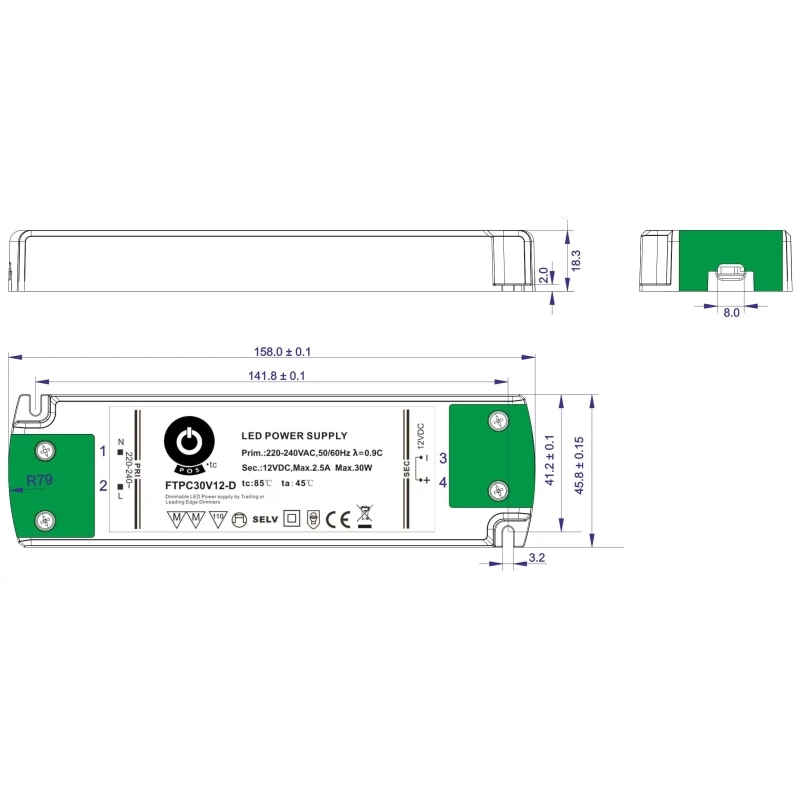

Width - (mm)	46
Length - (mm)	158
Height - (mm)	19
Weight - (g1pc)	200
Fixing	srew fixing
Connection	screw terminal
Warranty - (y)	2
