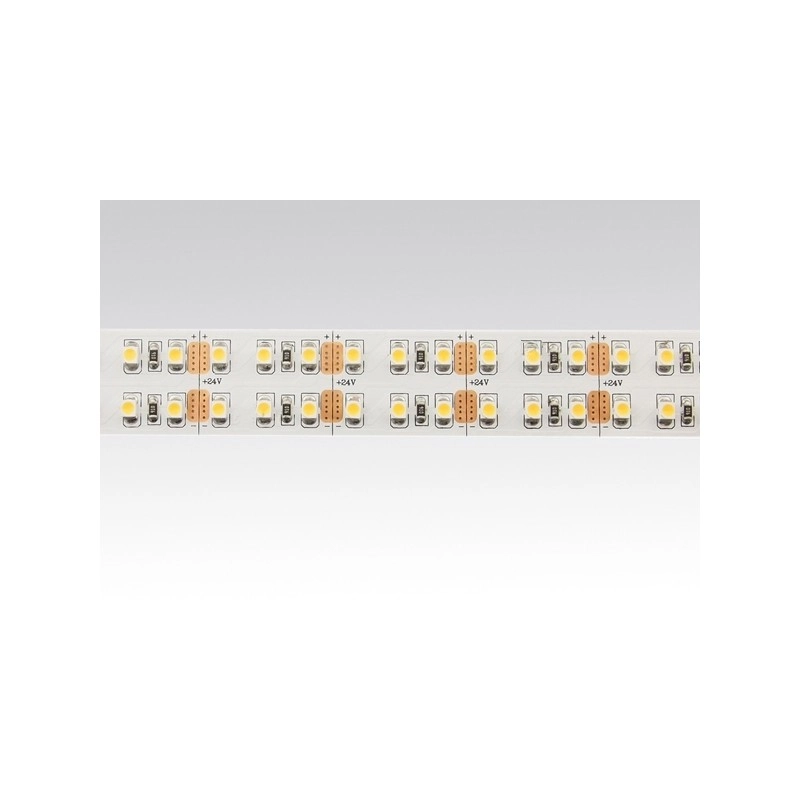

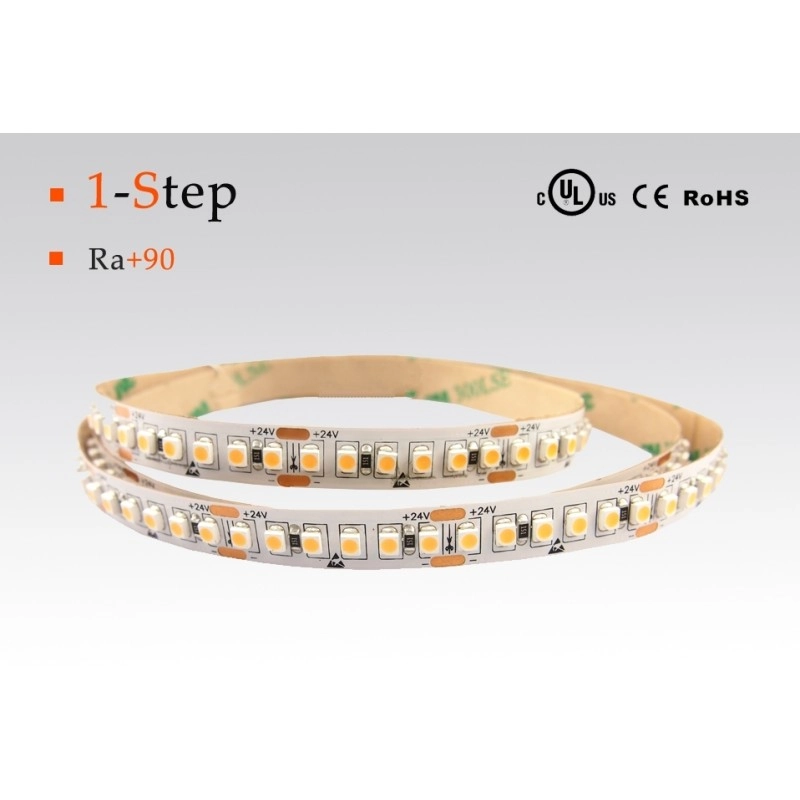

LED strip LR00159, 2200K, 24V, 19.2W/m, 1600lm/m, IP20, CRI90
Reference:
LED strip LR00159, very warm white, 2200 °K,
24V DC, 19.2 W/m, 1600 lm/m, SMD3528,
50 000 hours, IP20, CRI90,
Delivery time 2...4 weeks
Data sheet
Supply voltage - (V DC) | 24 |
Power - (W1m) | 19,2 |
LED strip efficiency - (lm1W) | 84 |
Energy class | G |
Dimming | dimmer/PWM |
Strip type | SMD |
Beam angle - (°) | 120 |
LED per meter | 240 |
Strip architecture - (CC-CV) | Constant voltage - (CV) |
Color sheme | Mono |
Color temperature - very warm white - (°K) | 2200 |
Brightness - very warm white - (lm1m) | 1600 |
Color rendering index - (CRI) | 90 |
Diode type | SMD3528 |
Estimated service time (L70) - h | 50000 |
LED manufacturer | Epistar |

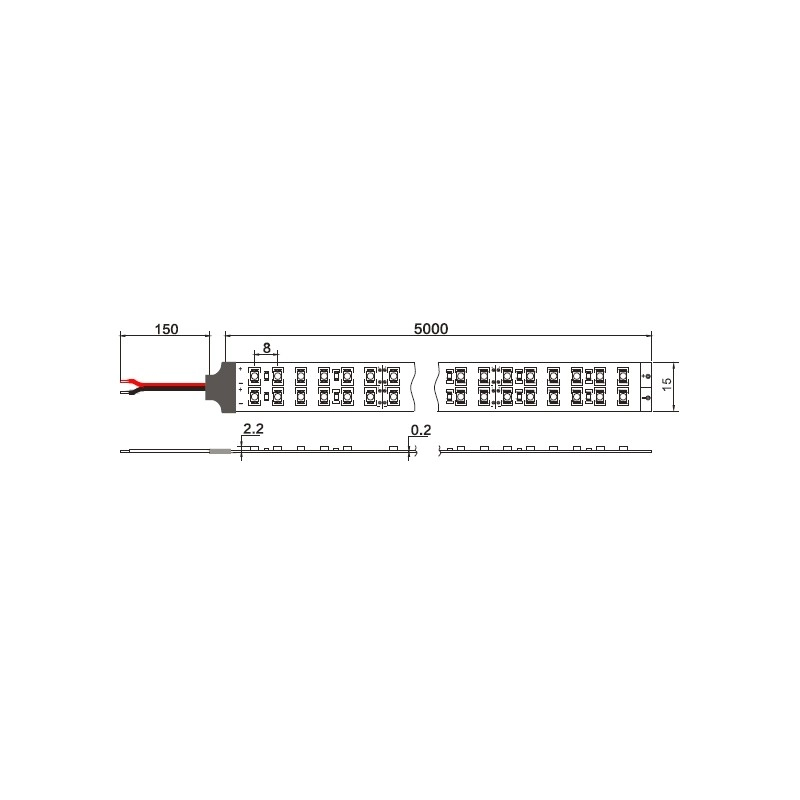

Width - (mm) | 15 |
Color consistency | MacAdam-1 |
Height - (mm) | 3 |
Minimum strip length (cutting step) - (mm) | 25 |
Type | flexible |
Fixing | double-sided tape |
Strip IP | 20 |
IP description | uncovered |
Warranty - (y) | 2 |
Quantity in package - (m) | 5 |
More info
Bright constant voltage LED strip, which recommended length is about 5 meter. With longer strip there may be visible difference of brightness, compared to start and end of strip. To avoid this, a higher voltage version can be used.
Ingress protection (IP) 20 is suitable for places where the strip is covered, usually with LED profile. Otherwise, falling dust may cause malfunction or even damage to the LED strip. No suitable for moisturized places.
5 meter strip has about 15 cm cable. Custom length can also be ordered.
Strip can be cut from cutting marks. When IP is more than 20 there is also need additional end caps to fulfill corresponding IP requirements. When choosing between different end caps, please pay attention to width. Different end caps are available, depending from strip width.
To connect strip to each other or to power supply (or dimmer), different connectors are available. When choosing these please pay attention to LED strip measures. There are many different types available and these cant be use to replace each other.
Usually strips are in length 5 meter. Custom length LED-strips with custom length power cables can be ordered. When ordering less than 5 meter please specify power cable length, otherwise strip may be without power cable.
Attention! If the product is customized, the final price may also change.
Given prices are for 1 meter.
