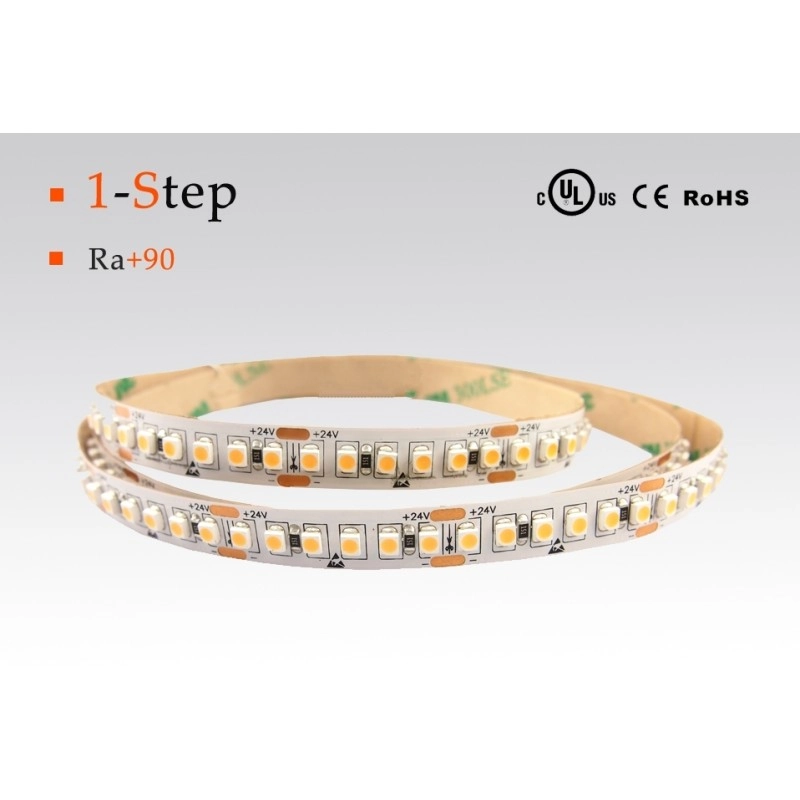

LED strip LR00236, 3000K, 24V, 18W/m, 1050lm/m, IP20, CRI90

Reference:

LED strip LR00236, warm white, 3000 °K,

24V DC, 18 W/m, 1050 lm/m, SMD3528,

50 000 hours, IP20, CRI90,

Delivery time 2...4 weeks

30,13 € Tax included

30,13 € per m

0.12 kg

The minimum purchase order quantity for the product is 5

Data sheet

Supply voltage - (V DC) 24
Power - (W1m) 18
LED strip efficiency - (lm1W) 59
Energy class G
Dimming dimmer/PWM
Strip type SMD
Beam angle - (°) 120
LED per meter 228
Strip architecture - (CC-CV) Constant current - (CC)
Color sheme Mono
Color temperature - warm white - (°K) 3000
Brightness - warm white - (lm1m) 1050
Color rendering index - (CRI) 90
Diode type SMD3528
Estimated service time (L70) - h 50000
LED manufacturer Epistar
Width - (mm) 12
Color consistency MacAdam-1
Height - (mm) 3
Minimum strip length (cutting step) - (mm) 26,32
Type flexible
Fixing double-sided tape
Strip IP 20
IP description uncovered
Warranty - (y) 2
Quantity in package - (m) 5

More info

Bright constant current LED strip, which recommended length is about 12 meter. With longer strip there may be visible difference of brightness, compared to start and end of strip. To avoid this, a higher voltage version can be used.

Ingress protection (IP) 20 is suitable for places where the strip is covered, usually with LED profile. Otherwise, falling dust may cause malfunction or even damage to the LED strip. No suitable for moisturized places.

5 meter strip has about 15 cm cable. Custom length can also be ordered.

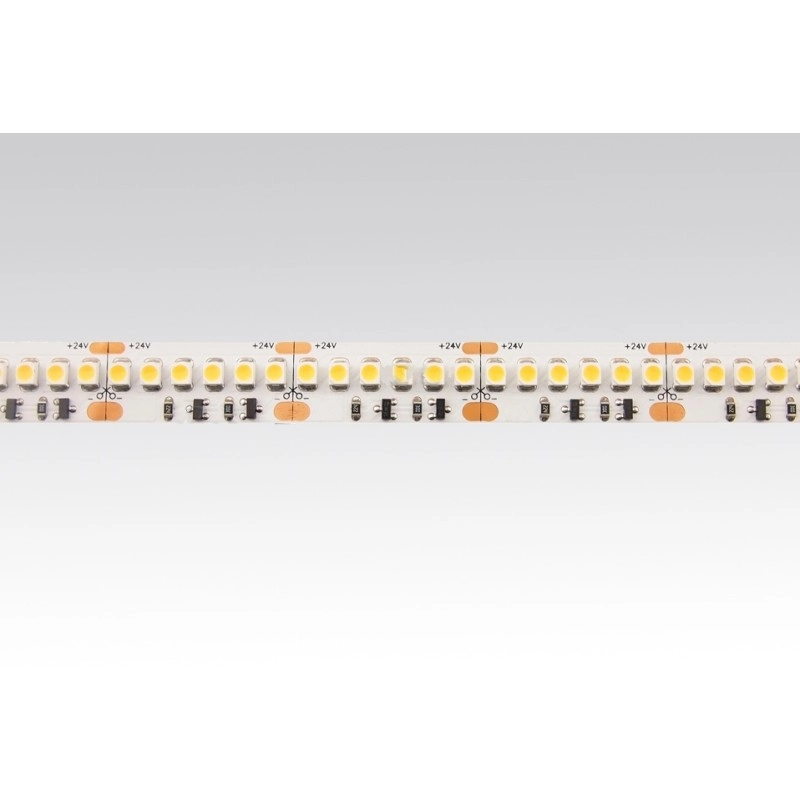

Strip can be cut from cutting marks. When IP is more than 20 there is also need additional end caps to fulfill corresponding IP requirements. When choosing between different end caps, please pay attention to width. Different end caps are available, depending from strip width.

To connect strip to each other or to power supply (or dimmer), different connectors are available. When choosing these please pay attention to LED strip measures. There are many different types available and these cant be use to replace each other.

Usually strips are in length 5 meter. Custom length LED-strips with custom length power cables can be ordered. When ordering less than 5 meter please specify power cable length, otherwise strip may be without power cable.

Attention! If the product is customized, the final price may also change.

Given prices are for 1 meter.
