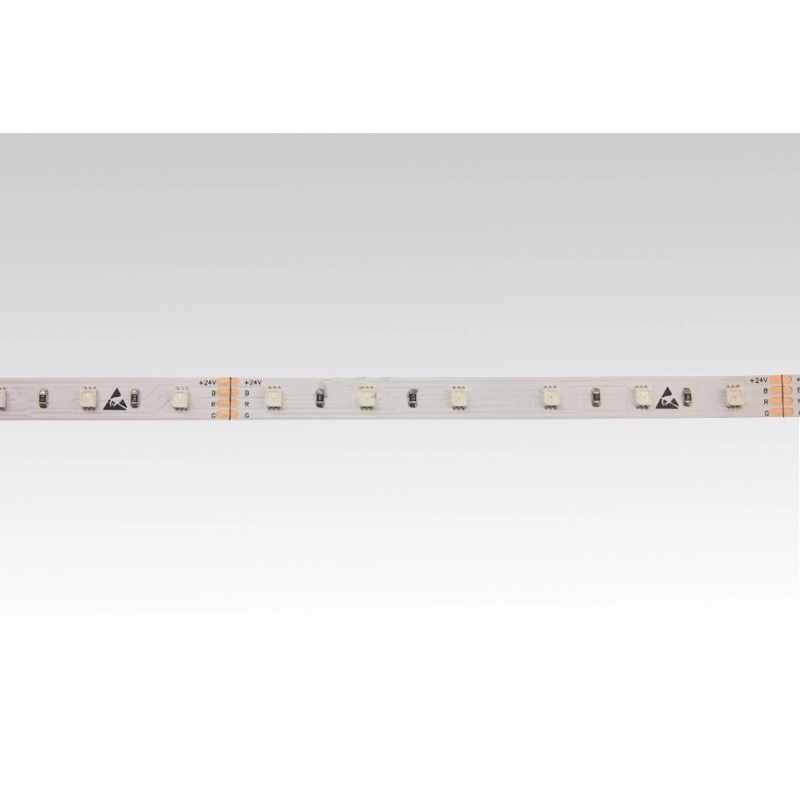

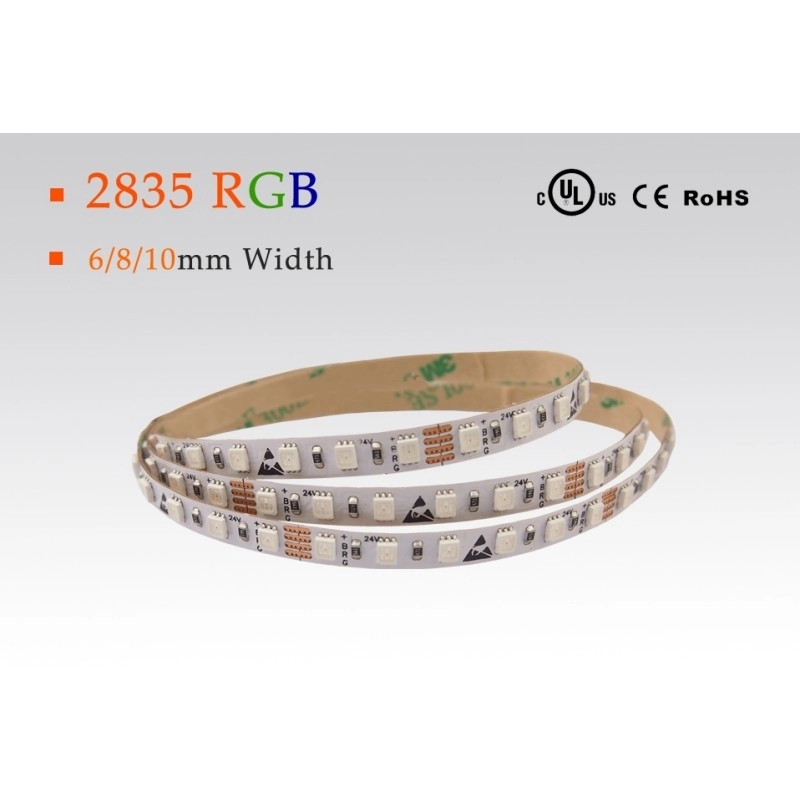

LED strip LR00662, RGB, 24V, 17W/m, 780lm/m, IP20


LED strip LR00662, RGB, 24V DC, 17 W/m, 780 lm/m, SMD2835, 50 000 hours, IP20

Delivery time 2...4 weeks

11,88 € Tax included

11,88 € per m

0.12 kg

The minimum purchase order quantity for the product is 5

Data sheet

Supply voltage - (V DC) 24
Power - (W1m) 17
Energy class G
Dimming dimmer
Beam angle - (°) 120
LED per meter 120
Strip architecture - (CC-CV) Constant voltage - (CV)
Strip type SMD
Color sheme RGB
Color - red - (nm) 620-630
Brightness - red - (lm1m) 156
Color - green - (nm) 510-525
Brightness - green - (lm1m) 504
Color - blue - (nm) 460-465
Brightness - blue - (lm1m) 120
Diode type SMD2835
3 in one Yes
LED manufacturer Epistar
Estimated service time (L70) - h 50 000
Width - (mm) 10
Minimum strip length (cutting step) - (mm) 50
Height - (mm) 3
Type flexible
Fixing double-sided tape
Strip IP 20
IP description uncovered
Warranty - (y) 2
Quantity in package - (m) 5

More info

Bright constant voltage LED strip, which recommended length is about 5 meter. With longer strip there may be visible difference of brightness, compared to start and end of strip. To avoid this, a higher voltage version can be used.

Ingress protection (IP) 20 is suitable for places where the strip is covered, usually with LED profile. Otherwise, falling dust may cause malfunction or even damage to the LED strip. No suitable for moistured places.

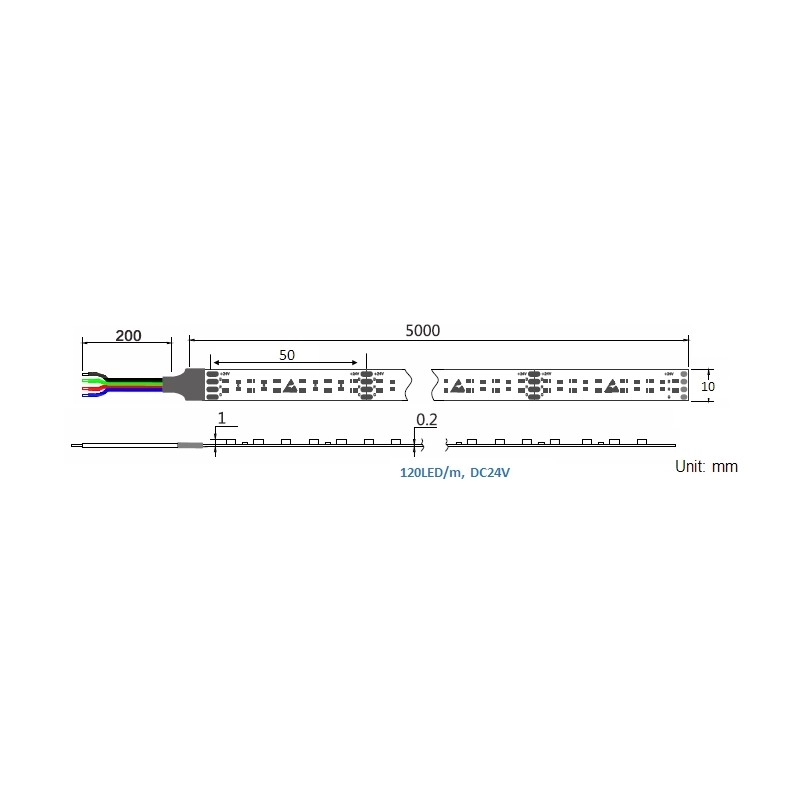

5 meter strip has about 15 cm cable. Custom length can also be ordered.

Strip can be cut from cutting marks. When IP is more than 20 there is also need additional end caps to fulfill corresponding IP requirements. When choosing between different end caps, please pay attention to width. Different end caps are available, depending from strip width.

To connect strip to each other or to power supply (or dimmer), different connectors are available. When choosing these please pay attention to LED strip measures. There are many different types available and these cant be use to reaplace each other.

Usually strips are in length 5 meter. Custom length LED-strips with custom length power cables can be ordered. When ordering less than 5 meter please specify power cable length, otherwise strip may be without power cable.

Attention! If the product is customized, the final price may also change.

Given prices are for 1 meter.
