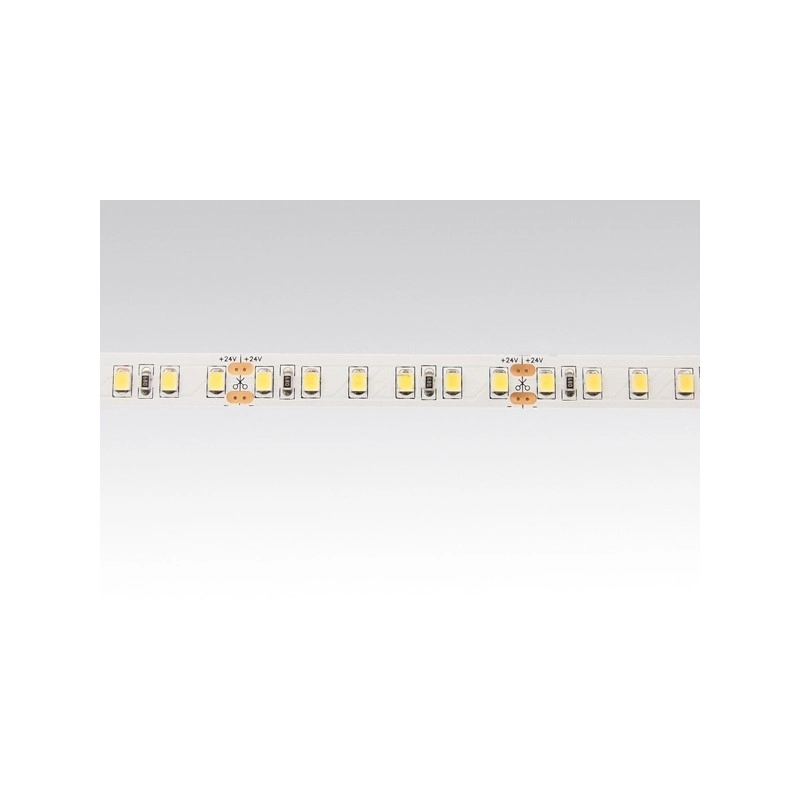

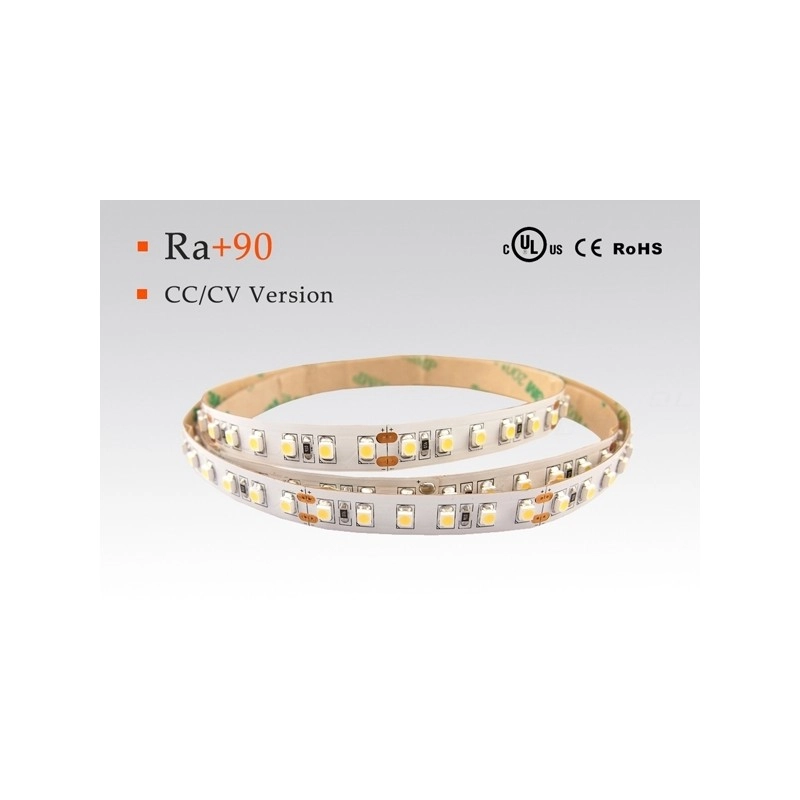

LED strip LR01250, 3000K, 12V, 9.6W/m, 720lm/m, IP68, CRI90

Reference:

LED strip LR01250, warm white, 3000 °K,

12V DC, 9.6 W/m, 720 lm/m, SMD3528,

50 000 hours, IP68, CRI90

Delivery time 2...4 weeks

9,85 € Tax included

9,85 € per m

0.12 kg

The minimum purchase order quantity for the product is 5

Data sheet

Supply voltage - (V DC) 12
Power - (W1m) 9,6
LED strip efficiency - (lm1W) 75
Energy class G
Dimming dimmer/PWM
Strip type SMD
Beam angle - (°) 120
LED per meter 120
Strip architecture - (CC-CV) Constant voltage - (CV)
Color sheme Mono
Color temperature - warm white - (°K) 3000
Brightness - warm white - (lm1m) 720
Color rendering index - (CRI) 90
Diode type SMD3528
Estimated service time (L70) - h 50000
LED manufacturer Epistar

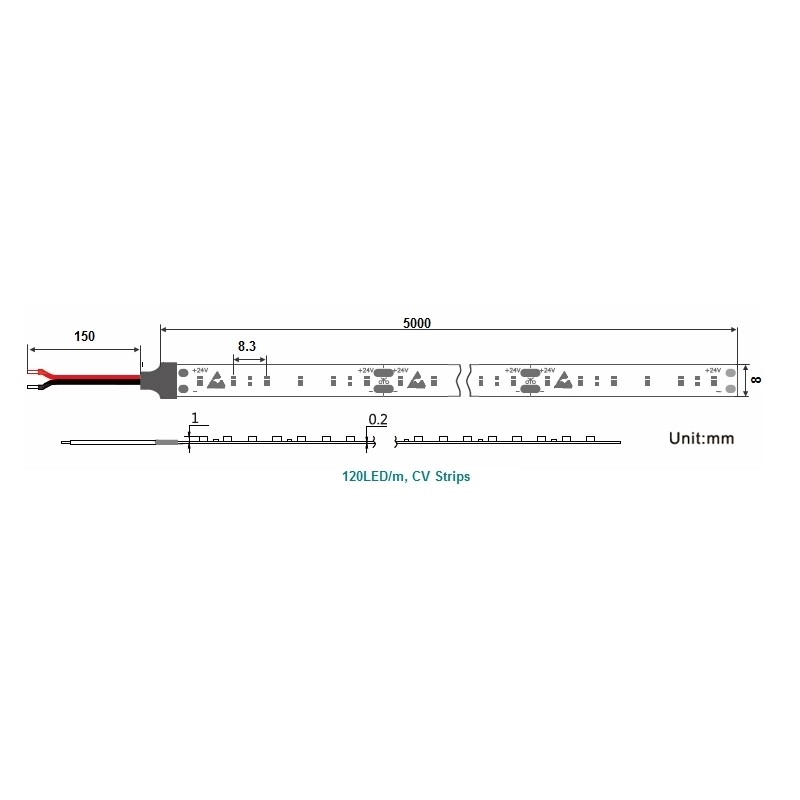

Width - (mm) 10
Color consistency MacAdam-3
Height - (mm) 4
Minimum strip length (cutting step) - (mm) 25
Type flexible
Fixing double-sided tape / clip
Strip IP 68
IP description filled silicone tube
Warranty - (y) 2
Quantity in package - (m) 5

More info

Regular brightness constant voltage LED strip, which recommended length is about 5 meter. With longer strip there may be visible difference of brightness, compared to start and end of strip. To avoid this, a higher voltage version can be used.

Ingress protection (IP) 68 means that this strip is enclosed in silicone tube which is also filled with silicone and thus suitable for moisturized and wet places. This strip can be also use in permanently submerged places. However duirng install please avoid damage to silicone tube, otherwise there can be damage to LED strip caused from moisture. We strongly recommen to use also clips for fixing, double sided tape may be not enough in wet conditions.

5 meter strip has about 15 cm cable. Custom length can also be ordered.

Strip can be cut from cutting marks. When IP is more than 20 there is also need additional end caps to fulfill corresponding IP requirements. When choosing between different end caps, please pay attention to width. Different end caps are available, depending from strip width.

To connect strip to each other or to power supply (or dimmer), different connectors are available. When choosing these please pay attention to LED strip measures. There are many different types available and these cant be use to replace each other.

Usually strips are in length 5 meter. Custom length LED-strips with custom length power cables can be ordered. When ordering less than 5 meter please specify power cable length, otherwise strip may be without power cable.

Attention! If the product is customized, the final price may also change.

Given prices are for 1 meter.
